feishu-飞书交互机器人开发

分类于

feishu-飞书交互机器人开发

前篇

流程

  1. 创建 机器人应用

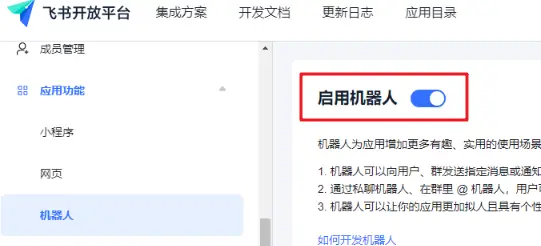

  2. 启用机器人

  3. 获取相关参数:

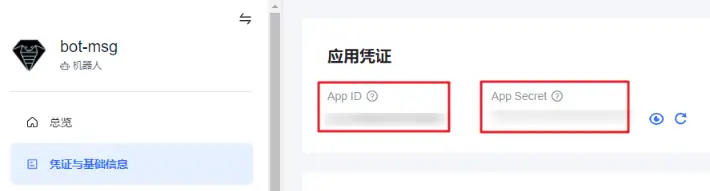

    1. appid, app secret

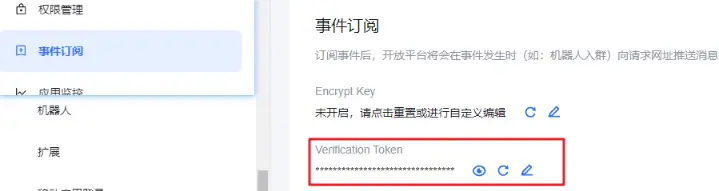

    2. Verification Token , Encrypt Key (非必须)

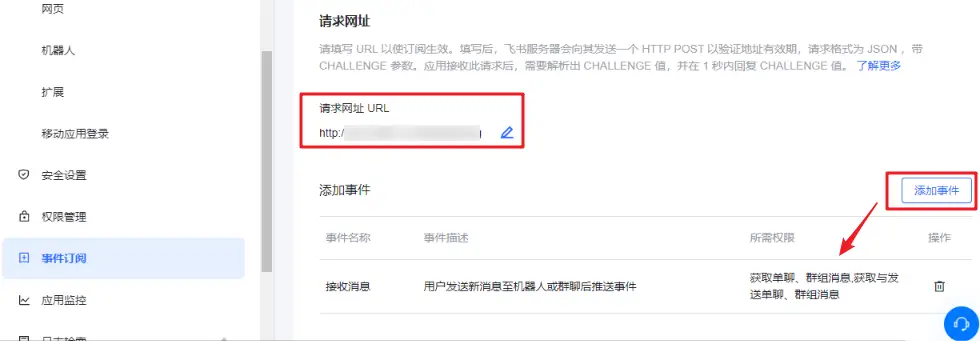

  4. 配置 请求网址

    注意, 配置请求网址时, 需要启动好服务, 因为点击 保存 时, 飞书会去检测服务是否合法

接收数据

单聊

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
{
    "schema": "2.0",
    "header": {
        "event_id": "8b2c88ad4704eb90eca6d1113a4adbcd",
        "token": "duxbbHtnGLampGhotmBg9ULesmHBDfBZ",
        "create_time": "1634371309743",
        "event_type": "im.message.receive_v1",
        "tenant_key": "13cbf99e6a0f175e",
        "app_id": "cli_a1d96e502478500c"
    },
    "event": {
        "message": {
            "chat_id": "oc_dc97f47a1cb562ab32e6504be5745adc",
            "chat_type": "p2p",
            "content": "{\"text\":\"11\"}",
            "create_time": "1634371309564",
            "message_id": "om_b6bec1170d06865491f374f594ce6be2",
            "message_type": "text"
        },
        "sender": {
            "sender_id": {
                "open_id": "ou_acc48efbf7a13be212bf9e5b8bbd5a11",
                "union_id": "on_4c95af379a29a957a02a66349eb3c6d4",
                "user_id": "gag2a216"
            },
            "sender_type": "user",
            "tenant_key": "13cbf99e6a0f175e"
        }
    }
}

群里 @ 机器人

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
{
    "schema": "2.0",
    "header": {
        "event_id": "aa25beadec35205718786f602bcd2661",
        "token": "duxbbHtnGLampGhotmBg9ULesmHBDfBZ",
        "create_time": "1634370421496",
        "event_type": "im.message.receive_v1",
        "tenant_key": "13cbf99e6a0f175e",
        "app_id": "cli_a1d96e502478500c"
    },
    "event": {
        "message": {
            "chat_id": "oc_15ed0b49b1de8dac5542363ac4dec90d",
            "chat_type": "group",
            "content": "{\"text\":\"@_user_1 中国智造\"}",
            "create_time": "1634370421100",
            "mentions": [
                {
                    "id": {
                        "open_id": "ou_b32abc1a55f7bc597d8e5d25ea337eaf",
                        "union_id": "on_609321e054cf257f09540a10df6c15c2",
                        "user_id": ""
                    },
                    "key": "@_user_1",
                    "name": "bot-msg",
                    "tenant_key": "13cbf99e6a0f175e"
                }
            ],
            "message_id": "om_689890eb294f514e4acc84a83c955fc9",
            "message_type": "text"
        },
        "sender": {
            "sender_id": {
                "open_id": "ou_acc48efbf7a13be212bf9e5b8bbd5a11",
                "union_id": "on_4c95af379a29a957a02a66349eb3c6d4",
                "user_id": "gag2a216"
            },
            "sender_type": "user",
            "tenant_key": "13cbf99e6a0f175e"
        }
    }
}

文件消息

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
{
    "event": {
        "message": {
            "chat_id": "oc_dc97f47a1cb562ab32e6504be5745adc",
            "chat_type": "p2p",
            "content": "{\"file_key\":\"file_v2_b611a01a-e2ca-4830-ac7e-017c9333212g\",\"file_name\":\"VIP玩家.xlsx\"}",
            "create_time": "1635741623964",
            "message_id": "om_d7471e5c1a60edc15ff60c3696fee787",
            "message_type": "file"
        },
        "sender": {
            "sender_id": {
                "open_id": "ou_acc48efbf7a13be212bf9e5b8bbd5a11",
                "union_id": "on_4c95af379a29a957a02a66349eb3c6d4",
                "user_id": "gag2a216"
            },
            "sender_type": "user",
            "tenant_key": "13cbf99e6a0f175e"
        }
    },
    "header": {
        "app_id": "cli_a1d96e502478500c",
        "create_time": "1635741624375",
        "event_id": "35b237099dcbf86ee78ccd58cea31c92",
        "event_type": "im.message.receive_v1",
        "tenant_key": "13cbf99e6a0f175e",
        "token": "duxbbHtnGLampGhotmBg9ULesmHBDfBZ"
    },
    "schema": "2.0"
}
