android-gradle记录

分类于 Android

android-gradle记录

前篇

Gradle 2 用户指南 - https://wiki.jikexueyuan.com/project/gradle-2-user-guide/

自定义任务 Task

Gradle Task的使用 - https://www.jianshu.com/p/cd1a78dc8346
Android Gradle 自定义Task 详解 - https://blog.csdn.net/zhaoyanjun6/article/details/76408024

gradle 中定义

task mylog() {
    group = 'a_mytask' // 指定任务分组, 在 gradle 窗口中可以看到, 不指定默认在 other 分组中
    println String.format("--- hello world") // 格式化字符串
}

构建指定任务

以构建 testapp 模块的 Release 版本为例, 也就是 :testapp:assembleRelease 任务.

命令行方式

E:\its_rummy\Rummy_AndroidStudio>gradlew :testapp:assembleRelease

Deprecated Gradle features were used in this build, making it incompatible with Gradle 6.0
Use '--warning-mode all' to show the individual deprecation warnings.
See https://docs.gradle.org/5.1.1/userguide/command_line_interface.html#sec:command_line_wa
rnings

BUILD SUCCESSFUL in 7s
42 actionable tasks: 1 executed, 41 up-to-date

gui 方式

在 testapp 模块的 build.gradle 中加入自定义任务, 依赖上 assembleRelease 任务即可.

task a_buildApplication() {
    group = "a_mytask"
    dependsOn(":testapp:assembleRelease")
}

怎么获取任务名

直接 build 的时候可以看到执行的所有任务

> Task :testapp:assembleDebug UP-TO-DATE
> Task :testapp:assembleRelease UP-TO-DATE
> Task :testapp:assemble UP-TO-DATE
> Task :app:prepareLintJarForPublish UP-TO-DATE

去掉任务

比如: 去掉 android 构建 apk 时的 verifyReleaseResources 任务

tasks.whenTaskAdded {task ->
    if(task.name.contains("verifyReleaseResources")) {
        task.enabled = false
    }
}

自定义插件 Plugin

Gradle自定义插件实现自定义Task - https://www.jianshu.com/p/1b506e0f8a5b

执行多个命令行

参考: execute multiple commands from task - https://stackoverflow.com/questions/35561014/gradle-execute-multiple-commands-from-task

错误姿势

task adbRestart(type: Exec) {
    workingDir "$projectDir"
    commandLine 'cmd', '/c', 'adb kill-server'
    commandLine 'cmd', '/c', 'adb start-server'
}

正确姿势

task adbRestart() {
    doLast {
        exec {
            workingDir "$projectDir"
            commandLine 'cmd', '/c', 'adb kill-server'
        }
        exec {
            workingDir "$projectDir"
            commandLine 'cmd', '/c', 'adb start-server'
        }
    }
}

执行任务

先 cd 到 build.gradle 所在目录

执行单个任务. 命令: gradle xxx

E:\its_rummy\Rummy_AndroidStudio\app (master -> origin)
$ D:\android-studio-3.4.2\gradle\gradle-5.1.1\bin\gradle a_ItsCopyJar

> Configure project :app
--- a_DelTempDir
--- a_ItsCopyAAR
--- a_unzip
--- a_ItsCopyJar
--- its build
hello world 111

> Task :app:lint
Ran lint on variant release: 41 issues found
Ran lint on variant debug: 41 issues found
Wrote HTML report to file:///E:/its_rummy/Rummy_AndroidStudio/app/build/reports/lint-results.html
Wrote XML report to file:///E:/its_rummy/Rummy_AndroidStudio/app/build/reports/lint-results.xml

Deprecated Gradle features were used in this build, making it incompatible with Gradle 6.0.
Use '--warning-mode all' to show the individual deprecation warnings.
See https://docs.gradle.org/5.1.1/userguide/command_line_interface.html#sec:command_line_warnings

BUILD SUCCESSFUL in 9s
54 actionable tasks: 4 executed, 50 up-to-date

执行多个任务. 命令: gradle xxx yyy

gradlew 构建 processDebugManifest 显示报错信息

模块a 引用模块b 时, 合并 Manifest 报错, 但是给的信息很有先, 只有 Manifest merger failed with multiple errors

查看具体的信息可以在项目的根目录 (模块目录的上一级目录) 执行: gradlew processDebugManifest --stacktrace -info, 然后搜索关键之 error, fail 之类的就可以找到错误信息

E:\its_rummy\Rummy_AndroidStudio>gradlew processDebugManifest --stacktrace -info
[:app] E:\its_rummy\Rummy_AndroidStudio\app\build\intermediates\library_manifest\debug\AndroidManifest.xml:50:5-76 Warning:
        Element uses-permission#android.permission.ACCESS_WIFI_STATE at [:app] AndroidManifest.xml:50:5-76 duplicated with element declared at [:app] AndroidManifest.xml:42:5-76
E:\its_rummy\Rummy_AndroidStudio\testapp\src\main\AndroidManifest.xml:7:9-43 Error:
        Attribute application@icon value=(@mipmap/ic_launcher) from AndroidManifest.xml:7:9-43
        is also present at [:app] AndroidManifest.xml:58:9-40 value=(@mipmap/app_icon).
        Suggestion: add 'tools:replace="android:icon"' to <application> element at AndroidManifest.xml:5:5-22:19 to override.
E:\its_rummy\Rummy_AndroidStudio\testapp\src\main\AndroidManifest.xml:11:9-40 Error:
        Attribute application@theme value=(@style/AppTheme) from AndroidManifest.xml:11:9-40
        is also present at [:app] AndroidManifest.xml:60:9-50 value=(@style/UnityThemeSelector).
        Suggestion: add 'tools:replace="android:theme"' to <application> element at AndroidManifest.xml:5:5-22:19 to override.

参考: Manifest merger failed with multiple errors, see logs问题处理 - https://blog.csdn.net/Picasso_L/article/details/53085299

gradle 中写代码逻辑

Gradle中的buildScript代码块 - https://www.cnblogs.com/huang0925/p/3940528.html
Gradle全局变量不在buildscript中的范围内 - https://www.thinbug.com/q/27031587

gradle 在执行脚本时，会优先执行 buildscript 代码块中的内容，然后才会执行剩余的 build 脚本。

所以在 buildscript 块中, 使用外部定义的变量是就会报错, 如:

def aaa = {}
buildscript {
    println(aaa)
}

会报错; Could not get unknown property 'aaa'

执行某个任务

Gradle高阶-Task执行 - https://juejin.cn/post/6844904016778903560

如果 cd 到项目根目录, 就需要带上模块

1	gradlew :Hello:assembleRelease --stacktrace

表示执行 Hello 模块的 assembleRelease 任务

assembleRelease 在 as 中看到的只是 assemble, release 指的是 gradle 中的构建类型, 在任务中拼接起来就是 assembleRelease
1
2
3
4
5
6
7
android {
buildTypes {
release {

}
}
}

如果自定义构建类型 wilker, 则需要在所有依赖的工程的 gradle 中都添加这个类型

android {
    buildTypes {
        wilker {

        }
    }
}

执行任务命令则是

            gradlew :Hello:assembleWilker --stacktrace



---

### 定义全局变量

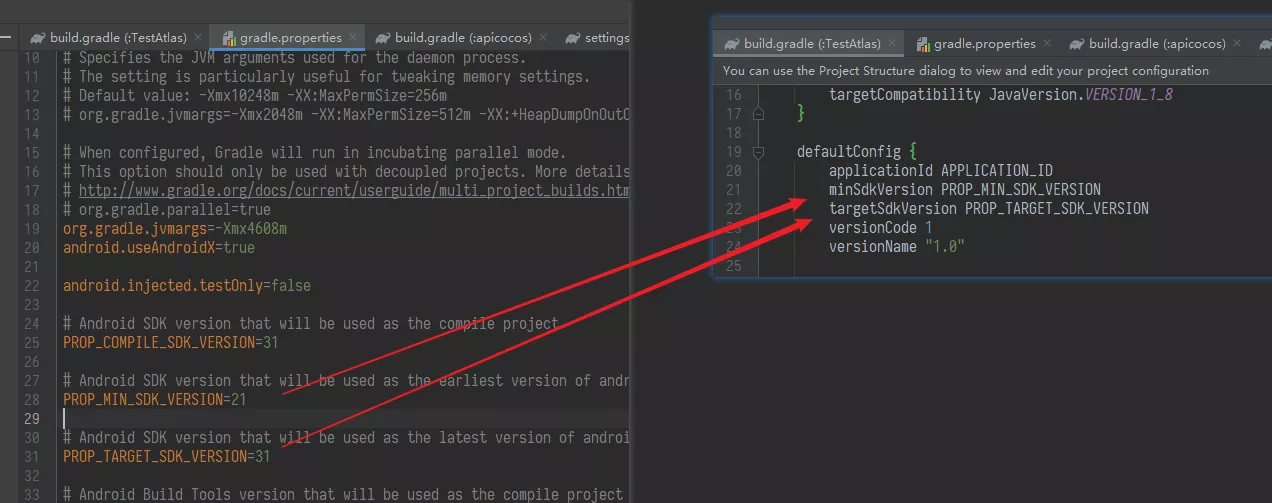

- 在 *gradle.properties* 中定义的变量, 可以在项目中的所有模块中使用

    ![image-20230405131558885](https://pic05.wilker.cn/20230405131600-985.webp)



---

### 在项目中引入任意目录下的模块

- 这个引入配置在 *settings.gradle* 中配置, 比如引入 *:apicocos* 模块

    ```json
    include ':apicocos'
    project(':apicocos').projectDir    = new File("E:/workspace/cocos/TestAtlas/build/android-001/proj/apicocos")

就可以在该项目中使用该模块的资源

    dependencies {
        implementation project(':apicocos')
    }



---

### 读取命令行参数

- 参考: 向gradle命令任务传递命令行参数的不同方法 - https://juejin.cn/post/7120878611376111646



1. 在 gradle 中读取参数

    ```json
    if (project.hasProperty("flagSo11")) {
        println("------------ flagSo11:")
        println(flagSo11)
    }
    if (project.hasProperty("flagSo22")) {
        println("------------ flagSo22:")
        println(flagSo22)
    }

命令行中加入参数

1	$ gradlew :MyGame:assembleRelease --stacktrace -PflagSo11=aaa -PflagSo22=bbb

结果

        ------------ flagSo11:
        aaa
        ------------ flagSo22:
        bbb



---

### 命令行构建 apk

1. 生成 wrapper

    ```json
    set JAVA_HOME=C:\Users\asd01\Desktop\Java\jdk1.8.0_144
    set ANDROID_SDK_ROOT=C:\Users\asd01\Desktop\android_sdk
    set GRADLE_ROOT=C:\Users\asd01\Desktop\gradle-6.7.1

    %GRADLE_ROOT%\bin/gradle wrapper

执行任务, 也就是构建 apk 等任务 (不能和生成 wrapper 同时执行, 不知道为啥)

set JAVA_HOME=C:\Users\asd01\Desktop\Java\jdk1.8.0_144
set ANDROID_SDK_ROOT=C:\Users\asd01\Desktop\android_sdk
set GRADLE_ROOT=C:\Users\asd01\Desktop\gradle-6.7.1

gradlew :launcher:bundleRelease --stacktrace --info

格式为 :模块名:任务名

清楚
1
gradlew clean

gradle 命令输出日志

有两级输出重定向, 第二级才有报错堆栈信息

1	$ gradlew :testapp:assembleRelease --stacktrace > "c:/aaa.txt" 2> "c:/bbb.txt"

踩坑

maven http 链接不安全

报错: redirect to a secure protocol (like HTTPS)

原因是 gradle 7.0+ 之后, maven 仓库的链接默认要求是 https, 如果是 http, 需要配置安全性字段 allowInsecureProtocol = true

buildscript {
    repositories {
        maven {
            allowInsecureProtocol = true // 配置安全性
            url 'http://192.168.1.233:8081/repository/maven_central/'
        }
    }
}

gradle 插件要求使用 Java 11

报错: Android Gradle plugin requires Java 11 to run. You are currently using Java 1.8

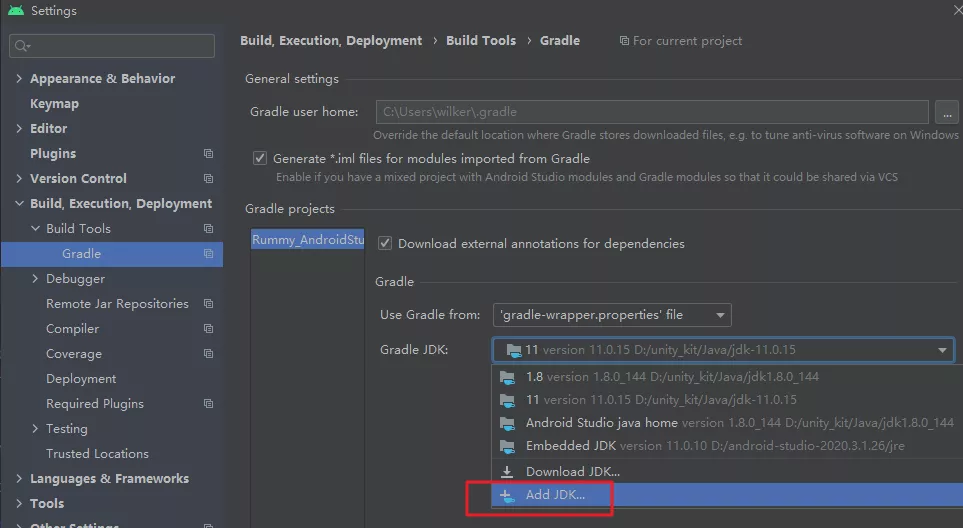

解决办法, 下载 jdk11, 然后修改 as 配置指向 jdk11

gradle 引入错误 material

报错: Can't determine type for tag '<macro name="m3_comp_assist_chip_container_shape">?attr/shapeAppearanceCornerSmall</macro>'

解决办法: 将 material 版本降低一点即可

    implementation 'com.google.android.material:material:1.8.0'
    // 修改为
    implementation 'com.google.android.material:material:1.0.0'



---

#### 转换 activity 报错

- 报错: `Failed to transform activity-1.8.0.aar`
- 解决办法:
    1. 将 项目级 和全局的 gradle.properties 配置里增加 `android.enableJetifier=false`
    2. 引入错误库, 将 `implementation 'androidx.constraintlayout:constraintlayout:2.1.4'`



---

#### 报错: AAPT2

- 报错: AAPT2 aapt2-4.1.0-6503028-windows Daemon #0: Unexpected error during link, attempting to stop daemon.

- 解决办法: 项目级 build.gradle 升级 构建工具

    ```json
    dependencies {
        classpath 'com.android.tools.build:gradle:4.2.0'
        classpath 'com.google.gms:google-services:4.3.3'
    }

https://stackoverflow.com/questions/67233807/android-gradle-build-error-aapt2-aapt2-4-1-0-6503028-windows-daemon-0-unexpec

主题报错

报错: java.lang.IllegalStateException: You need to use a Theme.AppCompat theme (or descendant) with this activity.
解决办法: 将 AppCompatActivity 修改为 Activity

样式 xml 报错

报错 Can’t determine type for tag m3_comp_assist_chip_container_shape shapeAppearanceCornerSmall 错误

解决办法: material 和 constraintlayout 降级

1 2	implementation 'com.google.android.material:material:1.6.0' implementation 'androidx.constraintlayout:constraintlayout:1.1.3'

https://stackoverflow.com/questions/74191324/cant-determine-type-for-tag-macro-name-m3-comp-bottom-app-bar-container-colo

创建 handler 报错

报错: Can’t create handler inside thread that has not called Looper.prepare()
原因：非主线程中没有开启Looper，而Handler对象必须绑定Looper对象需要调用Looper.prepare()来给线程创建一个消息循环，调用Looper.loop()来使消息循环起作用。

解决办法: 在主线程中创建即可

Tools.runOnUiThread(() -> {
    // 执行代码
    SplashHelper.setIns(new SplashNew());
});

构建时检查报错找不到 Vendor 类

报错: java.lang.NoClassDefFoundError: com/android/tools/lint/client/api/Vendor

解决办法: 加入 lint 禁用配置

android {
    ...
    lintOptions {
        checkReleaseBuilds false
    }
}

https://stackoverflow.com/questions/74021159/caused-by-java-lang-classnotfoundexception-com-android-tools-lint-client-api-v
